Field notes · Nº 16 2 min read Judgment

Edison's lamp was shaped by streets it had not yet lit.

By Pallav Sharma · Co-founder & CTO

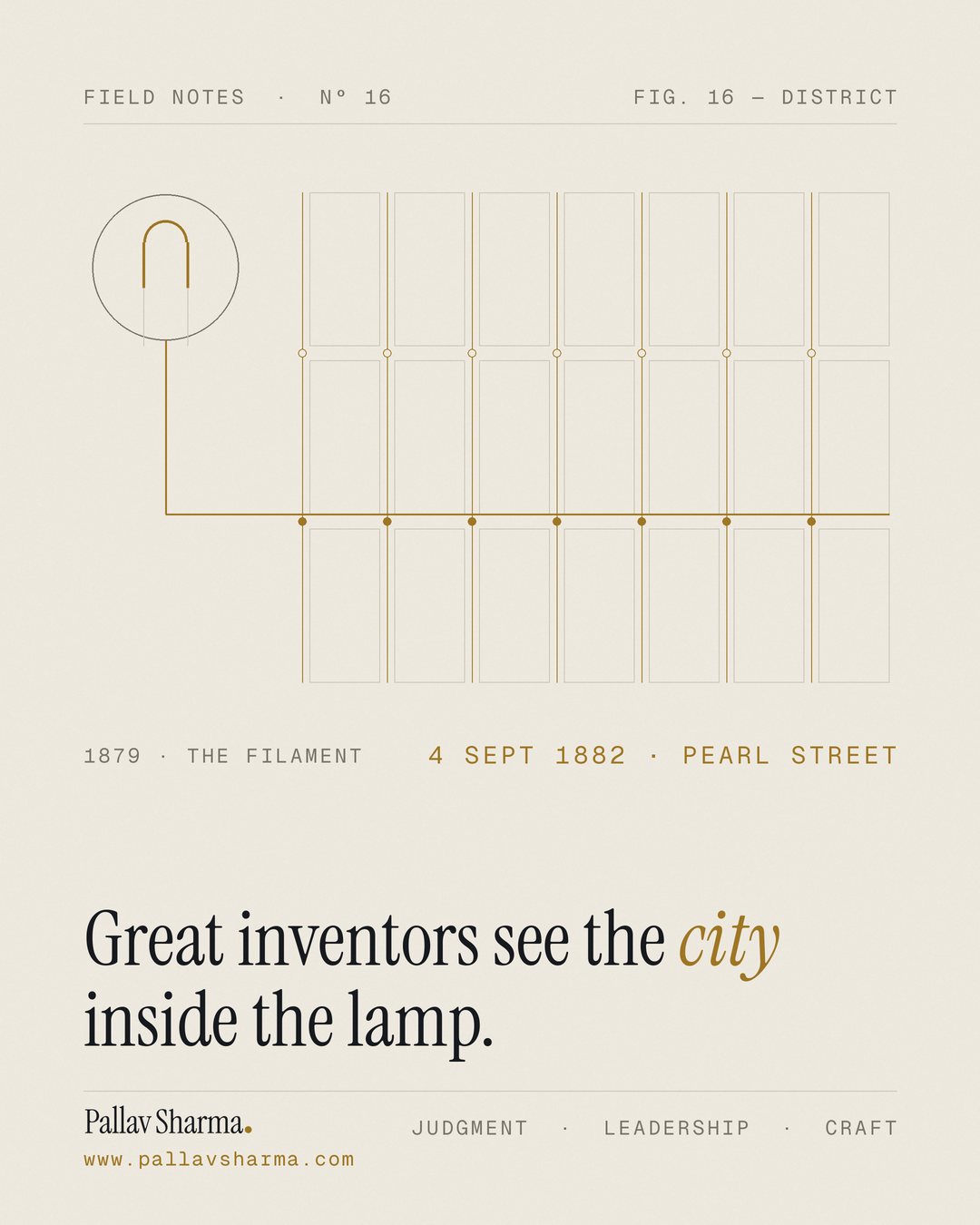

On cream paper, a gold hairpin filament sits inside a faint circle at the upper left; a gold line drops from it and runs as a main along the streets of a district plan of faint rectangular blocks, branching up and down every cross street, with a small mark at each corner. Labels: '1879 · the filament' and '4 Sept 1882 · Pearl Street'. Headline: 'Great inventors see the city inside the lamp.' Pallav Sharma, www.pallavsharma.com.

To light lower Manhattan, he gave it a high-resistance filament that kept the copper under those streets affordable.

On 4 September 1882, Pearl Street switched on.

I think of the lamp as the smaller invention.

Great inventors see the city inside the lamp.

What is the finest thing you have seen built for a world that was not there yet?

Going deeper

In 1878, Thomas Edison announced a plan that sounded larger than any lamp. He meant to light lower Manhattan with electricity, replacing the gas that lit it then. The lamp he still had to invent was only one piece of that picture. There would be generators, mains laid under the streets the way gas pipes were, fittings in people’s homes, and meters to measure what each customer used.

Holding the whole picture in mind changed the small part. Electricity loses energy as heat in the wires that carry it, and the obvious answer, thick copper conductors, would have made the whole venture too expensive to build. Edison saw that a lamp with a high resistance could run on less current at a higher voltage, which meant far less copper under the streets. The filament took its shape from the city.

On 4 September 1882, the Pearl Street station began supplying its first customers in the First District, about a quarter of a square mile of lower Manhattan. The lamps in those offices were the visible end of a city-sized idea.

What I admire most is where his attention sat. A brilliant lamp on a laboratory bench is a marvel. A lamp designed for the wires, the streets and the bills that would follow it is the beginning of an industry. Edison looked past the object to the life it would lead in the world, and let that life decide its details.

The pattern returns wherever great things are built. The most admired objects in the world, a bridge, an instrument, a machine, carry the imprint of everything around them. The part their makers hand over looks simple. The thinking inside it is enormous.

Every great object carries the world it was made for.

Sources

Thomas A. Edison Papers, Rutgers: Conceiving the system · Paul Israel: Edison invents the electric light · Electricity Forum: Edison’s legacy · IEEE ETHW: Pearl Street Station, 1882 · IEEE ETHW: Edison and Pearl Street
